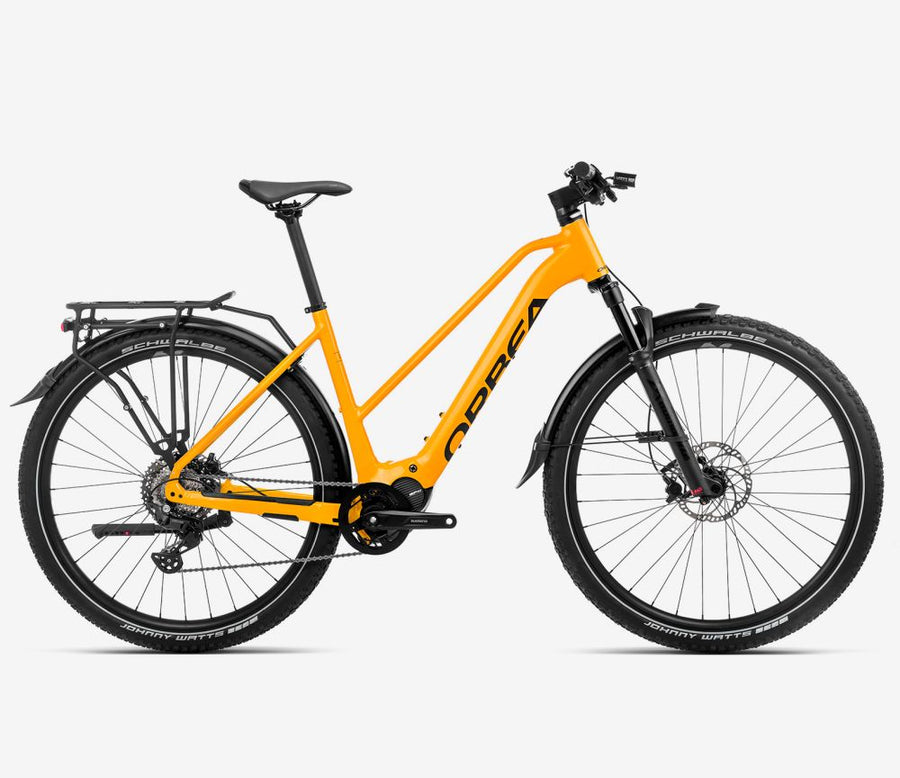

Orbea Kemen Mid Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
-
Specifications
Frames
FrameForkMarzocchi Bomber Z2 100 QR15x110 E-Bike Optimized
HeadsetFSA 1-1/2" Integrated Aluminium Cup
Drivetrain
ChainringAlloy EP8 36t w/chainguard
CrankShimano Steps EM600
ShiftersShimano Deore M5130 Link Glide
CassetteShimano CS-LG400 11-43t 10-Speed
Rear derailleurShimano Deore M5130 Link Glide GS Shadow Plus
ChainKMC eGlide
Cockpit
HandlebarOC Mountain Control MC31, Rise20, Width 800
StemAlloy forged, 35mm interface, -6º, ICR
Brakes
BrakesMagura MT30 Hydraulic Disc Easy Route Connection
Brakes Configuration
Wheels
WheelsAlloy, Tubeless, 29", 29c, 32H
TyresSchwalbe Johnny Watts, 29x2.35 RaceGuard Reflective Tape
Accessories
PedalsVP-537 Black
Rear carrierOrbea Kemen Suv oversize Alloy Rear Carrier, w/MIK HD and Oertlieb QL3.1 system (Max:25Kg)
Carrier accessoriesN/A
MudguardCURANA Apollo 70mm
Front Position LightFront position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50.
Front lightLezyne Ebike POWER STVZO PRO E115 with remote 310 lumens
Rear lightLezyne Super Bright CARRIER STVZO Alert Technology 12Lumen
Quick standUrsus Mooi rear adjustable
Components
SeatpostAlloy, 31.6mm, Setback 0
SaddleSelle Royal Vivo 1216 DRN 160x249mm
Ebike
MotorShimano EP801
BatteryOrbea Internal 540Wh (Optional 250 Wh Range Extender)
CHARGEROrbea 2.Generation eBike Smart charger 42V/2-4A
RemoteEN600-L
